A Familiar Shape Is Not Yet a Signal
Two peaks do not automatically make a double top.
Three peaks do not automatically make a head and shoulders pattern.
A small triangle does not tell you which direction price must move.
A chart pattern becomes useful only when you read the trend before the pattern, the boundary that completes it, the quality of the breakout and the level that proves the idea wrong.
That is the difference between recognising a shape and analysing a market structure.

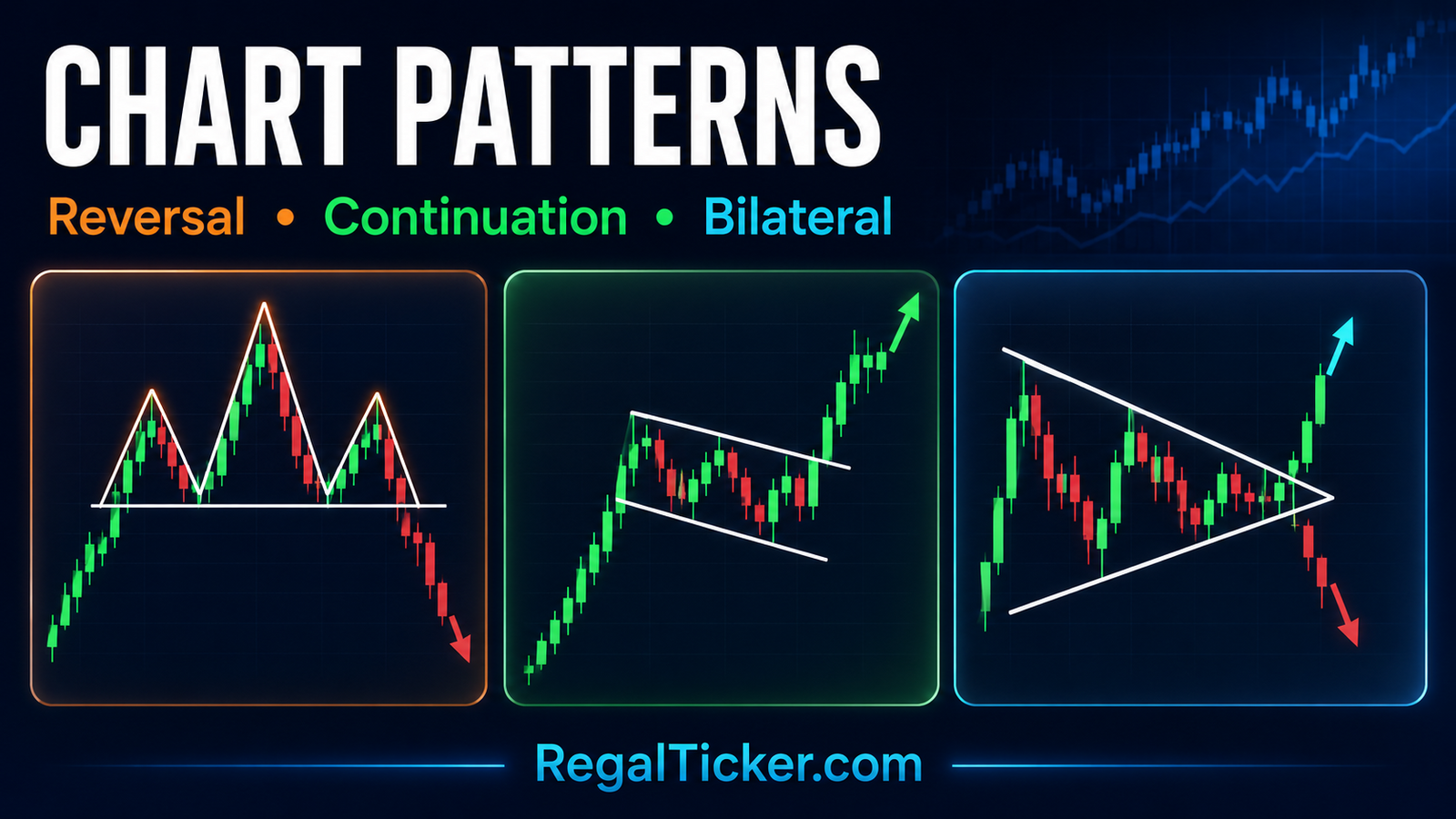

This guide explains reversal, continuation and bilateral chart patterns in a practical order. It also shows why an incomplete pattern should remain a scenario—not a prediction—and why a projected target never replaces risk control.
Before continuing, make sure you understand trend analysis, support and resistance and candlestick charts.
⚡ Quick answer
Chart patterns are recognisable price structures created by a sequence of swing highs, swing lows, support, resistance and trendlines. A reversal pattern may signal that an existing trend is changing. A continuation pattern may represent a pause before the earlier trend resumes. A bilateral pattern can break in either direction.
The shape alone is not enough. First identify what trend existed before the formation. Then wait for price to complete the structure and close beyond the relevant boundary. Volume, follow-through or a successful retest can strengthen the evidence, but no confirmation method removes failure risk. Define invalidation before considering a measured target.
Key takeaways
A chart pattern is a structured price scenario, not a guaranteed forecast.
Reversal patterns require a prior trend that could reverse.
Continuation patterns require a meaningful impulse and a genuine pause.
Bilateral patterns should be planned in both directions before the break.
A potential pattern is not complete until its confirmation boundary breaks.
A candle wick beyond a boundary is weaker evidence than a decisive close and follow-through.
Volume can support a breakout, but high volume cannot make a poor structure reliable.
Textbook pattern targets are estimates, not promised destinations.
Invalidation and position risk should be defined before entry.
The same shape can behave differently across timeframes, liquidity conditions and broader market regimes.
What Are Chart Patterns in the Stock Market?
A chart pattern is a recognisable configuration of price movement. It develops as buyers and sellers repeatedly react around swing points, support and resistance zones or sloping boundaries.
Patterns help organise uncertainty into testable scenarios.
For example, a symmetrical triangle tells you that price is compressing between lower highs and higher lows. It does not tell you that an upward breakout is guaranteed. The useful analysis is to define what would confirm an upside resolution, what would confirm a downside resolution and what behaviour would show that the break has failed.

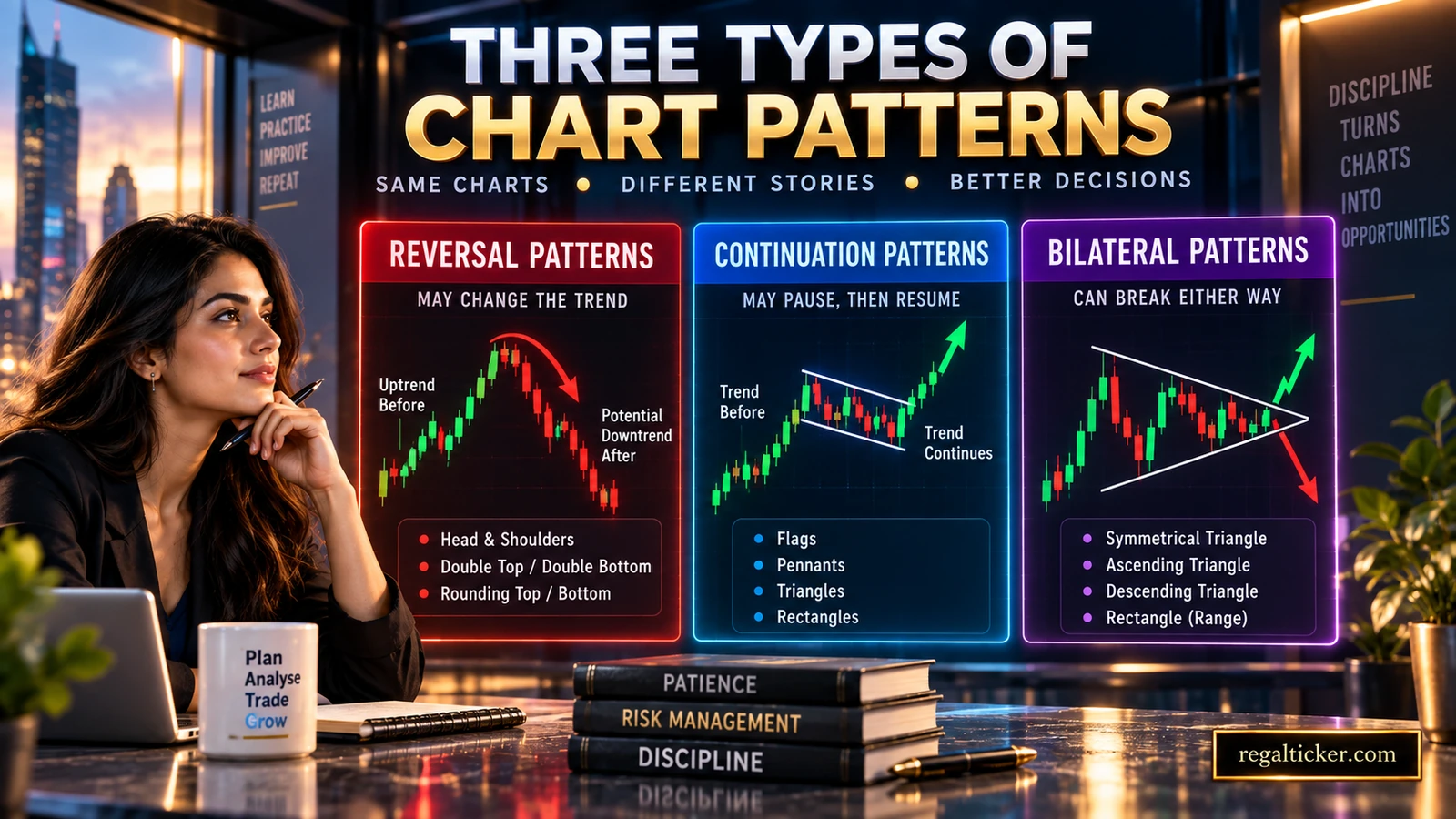

Reversal pattern
- Appears after a recognisable trend
- Suggests that the earlier direction may change
- Examples include head and shoulders, inverse head and shoulders, double top and double bottom
- Requires a neckline or structural boundary break for traditional confirmation
Continuation pattern
- Appears during an established directional move
- Suggests that the earlier trend may resume after a pause
- Examples include flags, pennants and some rectangles or triangles
- Requires a break in the expected direction with credible follow-through
- A bilateral pattern remains neutral until the market chooses a direction. A symmetrical triangle and many rectangle ranges belong in this scenario-first category.
Highlight
Pattern Names Describe Possibilities
The market does not owe a chart pattern its textbook outcome.
Use the name to organise evidence—not to turn uncertainty into certainty.
The Five Parts of a Complete Chart Pattern
Before naming a formation, check five parts.
1
Prior context
Identify the trend, range or impulse that existed before the pattern began.
2
Meaningful boundaries
Draw the pattern from visible swing points or zones, not arbitrary candles chosen to improve the shape.
3
Sufficient development
Allow the structure to form; one or two convenient candles may not create a usable pattern.
4
Confirmation event
Define the close, break, follow-through or retest that would activate the scenario.
5
Invalidation
Decide what price behaviour would show that the interpretation has failed.
⭐ Pro tip
Write the Condition Before the Direction
Instead of saying, “This stock will break out,” write:
“The bullish scenario becomes active only after a decisive close above the boundary, while a return inside the pattern would weaken it.”
Conditional language keeps analysis tied to evidence.

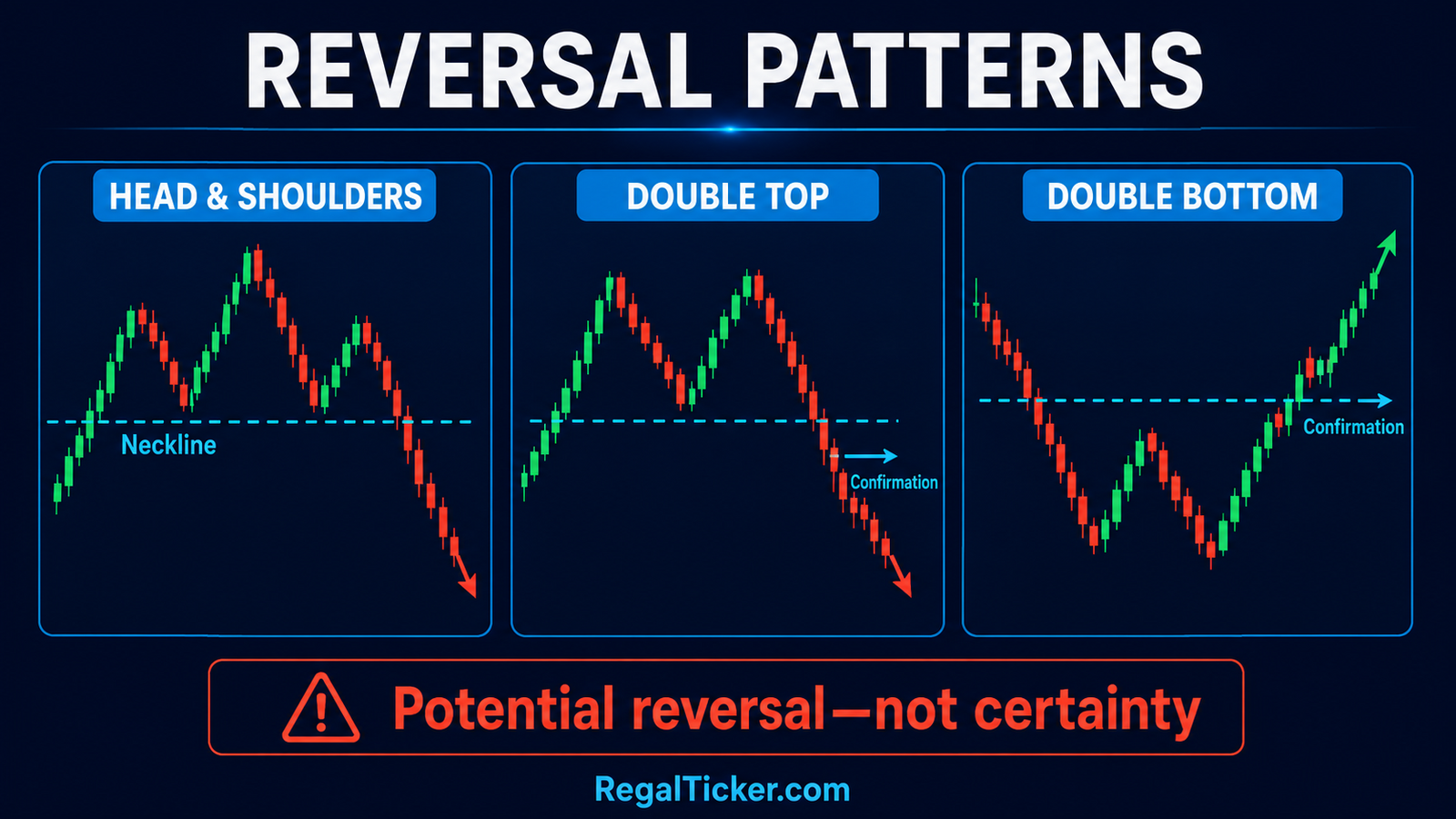

Reversal Chart Patterns
Reversal patterns suggest that an established trend may be losing control and changing direction.
The prior trend is essential. A bearish reversal pattern without an earlier uptrend has nothing meaningful to reverse. A bullish reversal pattern without an earlier downtrend may simply be part of a range.

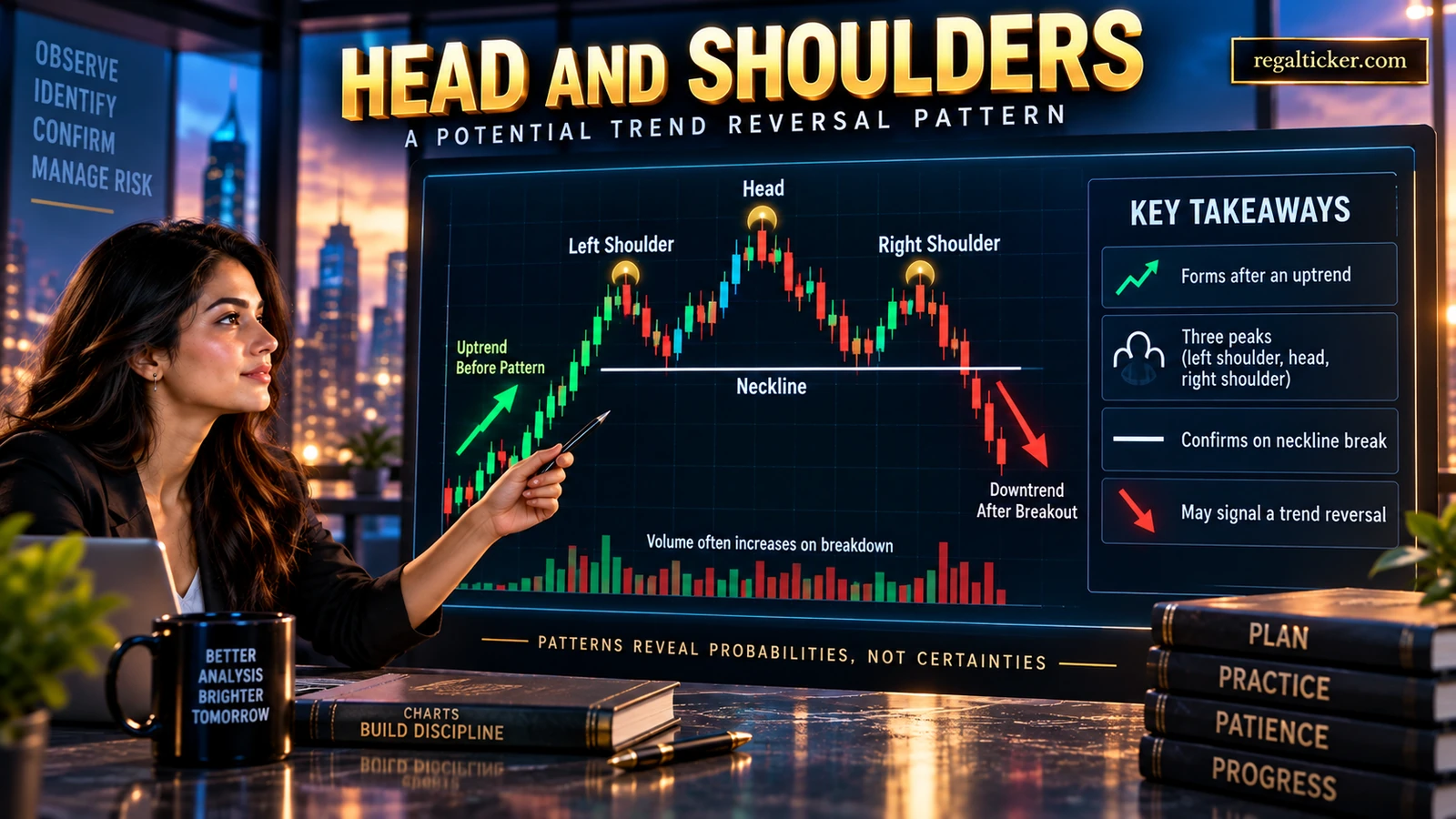

Head and Shoulders
A standard head and shoulders pattern is a potential bearish reversal after an uptrend.
Its structure normally includes:
- a left shoulder formed by a peak and pullback;
- a higher central peak called the head;
- a right shoulder that forms below or around the height of the left shoulder;
- and a neckline joining the two intervening reaction lows.
The three peaks do not need perfect symmetry.
The important question is whether the market stops making sustained upward progress and then breaks the neckline. Until that break occurs, the structure is only a potential pattern.
An inverse head and shoulders applies the same logic after a downtrend. It uses three troughs, with the central trough deepest, and traditionally confirms when price breaks above the neckline.
Caution
Do Not Trade the Right Shoulder as a Completed Pattern
The right shoulder may fail, extend or become part of a larger range.
Waiting for neckline confirmation reduces one form of uncertainty, although it can also mean a later entry. Neither choice removes risk.

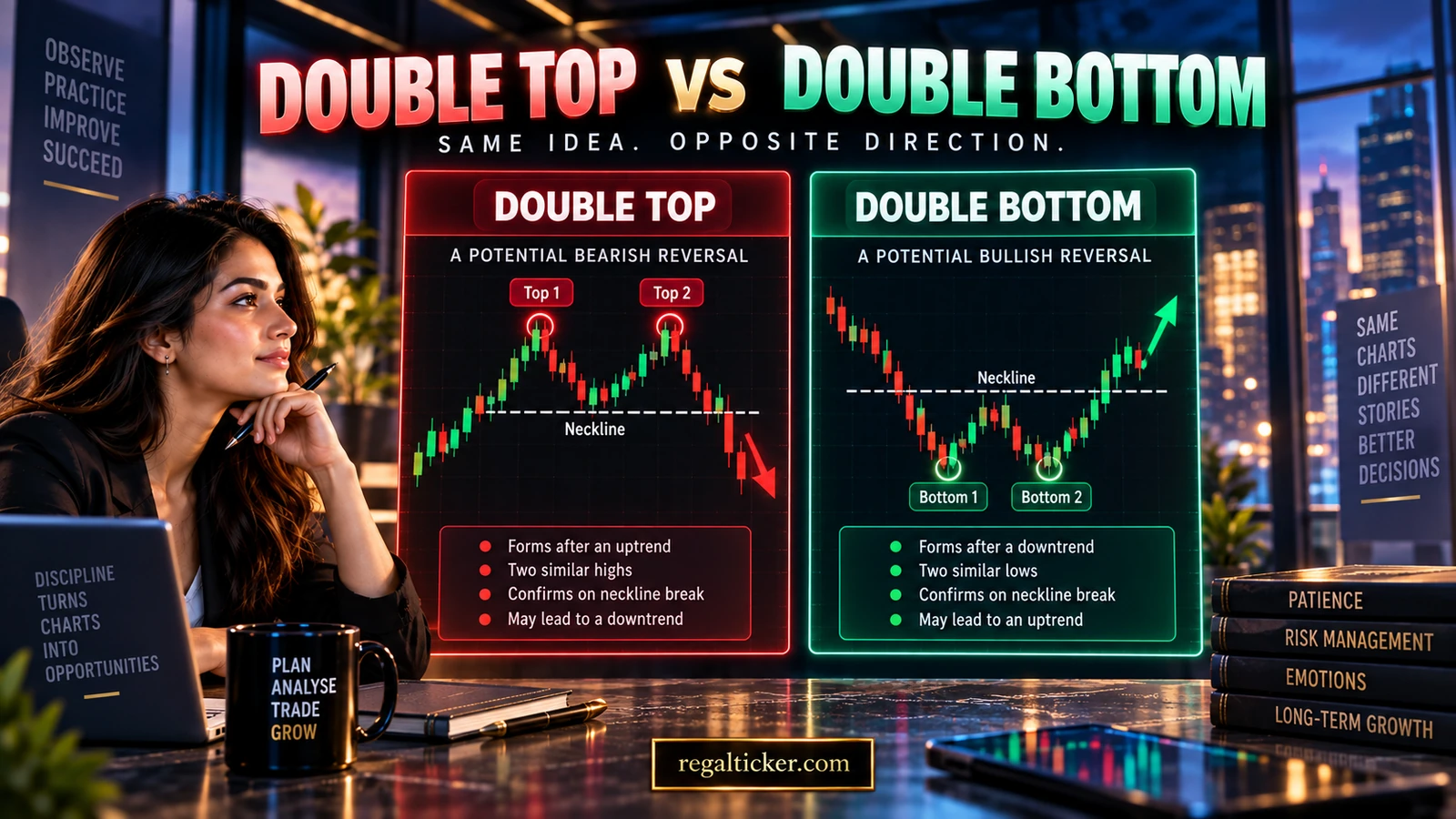

Double Top and Double Bottom
A double top is a potential bearish reversal after an advance. Price tests a similar upper zone twice, while the reaction low between those tests forms the confirmation level or neckline.
Two similar highs alone do not complete the pattern.
Traditional confirmation occurs only after price breaks below the intervening low.
A double bottom is the bullish counterpart after a decline. Price tests a similar lower zone twice, and the intervening reaction high becomes the confirmation level. The pattern traditionally completes after a break above that level.
❌ Myth
The two peaks or troughs must be at exactly the same price.
✅ Fact
Markets react around zones. The quality of the prior trend, the separation between tests, the intervening swing and the eventual break matter more than perfect visual symmetry.
Rounding Tops and Bottoms
A rounding top shows a gradual loss of upward progress rather than a sharp three-peak structure. A rounding bottom shows a gradual transition from decline to recovery.
These formations often require more time and judgment than a simple textbook diagram suggests. Do not force a smooth curve through irregular price action. Look for a genuine change in the sequence of swings and confirmation beyond an important structural level.

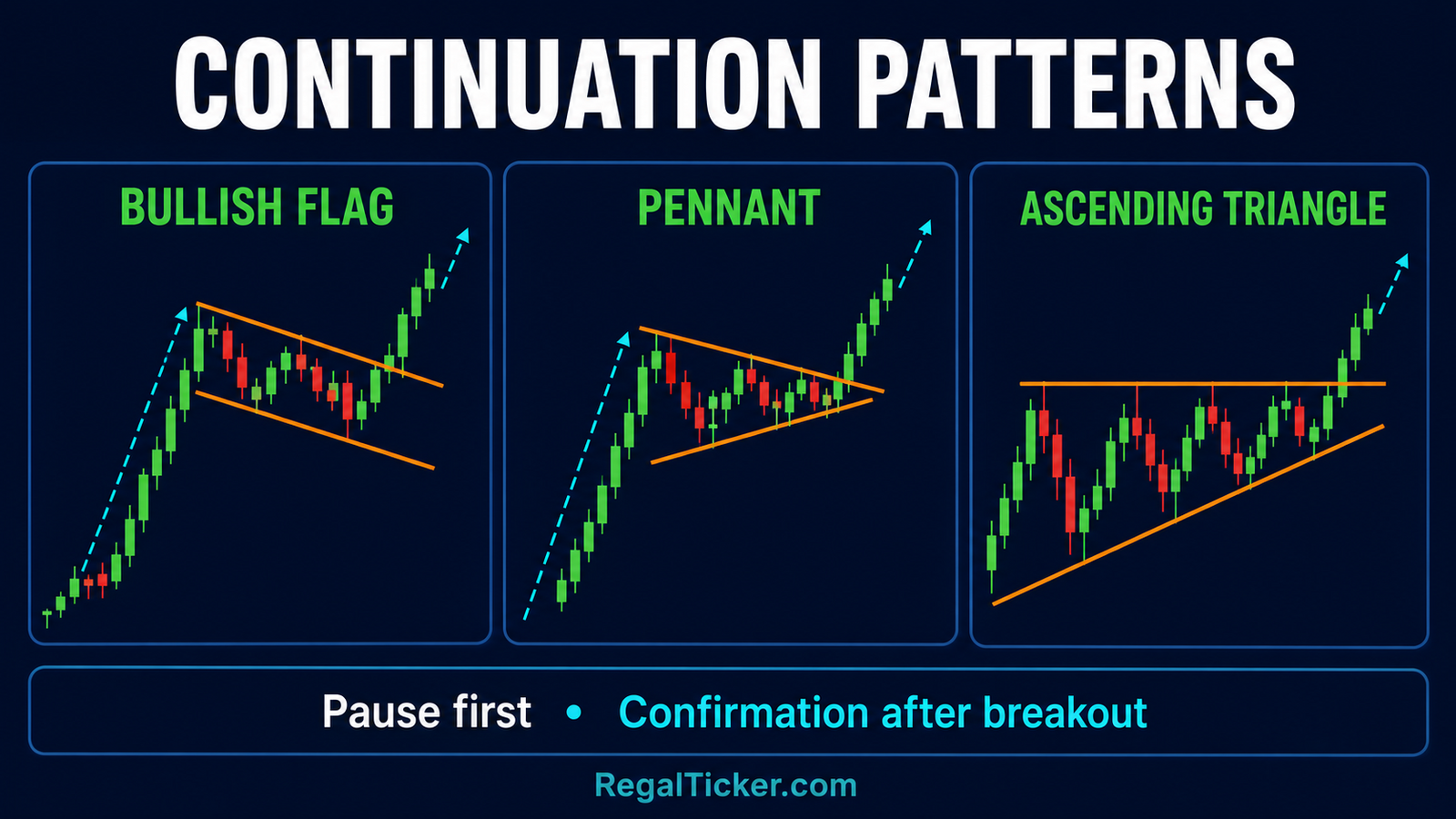

Continuation Chart Patterns
Continuation patterns form during an existing directional move and represent a pause, consolidation or temporary counter-trend drift.
Their logic depends on what came before them.
A compact channel without a strong preceding move is not automatically a flag. A small triangle without a clear impulse is not automatically a pennant.

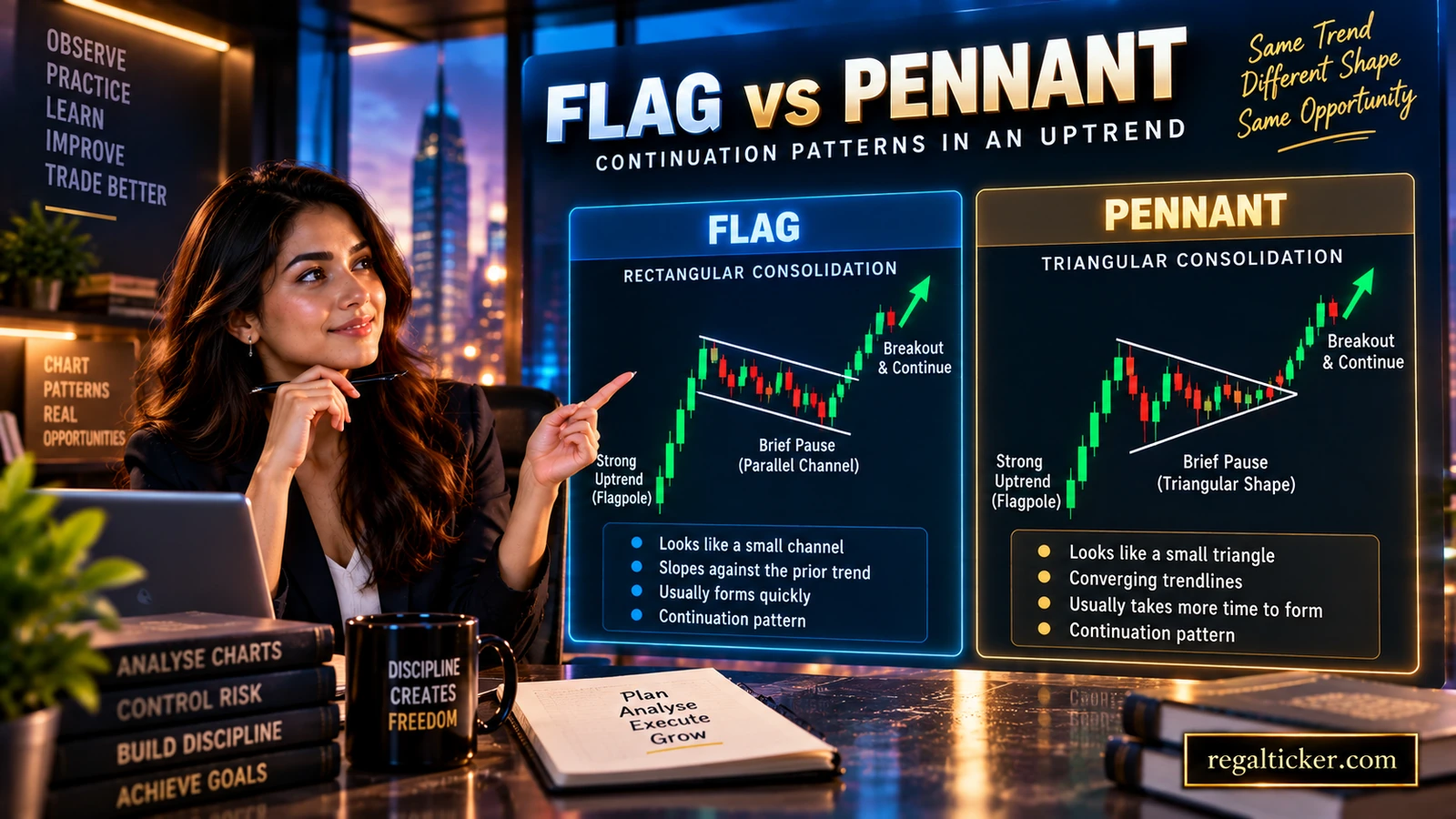

Flag Pattern
A flag normally begins with a strong directional move called the flagpole. Price then pauses inside a compact channel with roughly parallel boundaries.
In a bullish flag, the pause often slopes modestly downward or moves sideways after an upward impulse. In a bearish flag, the pause often slopes modestly upward or sideways after a downward impulse.
The pattern remains incomplete until price breaks from the channel with credible confirmation.
Pennant Pattern
A pennant also follows a strong impulse, but its consolidation narrows between converging boundaries rather than staying inside a parallel channel.
The consolidation should be compact relative to the preceding move. A long, loose symmetrical triangle with no clear flagpole should not be relabelled as a pennant simply because the lines converge.
Flag
- Clear preceding impulse
- Compact pause
- Roughly parallel boundaries
- Often drifts slightly against the earlier move
Pennant
- Clear preceding impulse
- Compact pause
- Converging boundaries
- Volatility often contracts into the apex

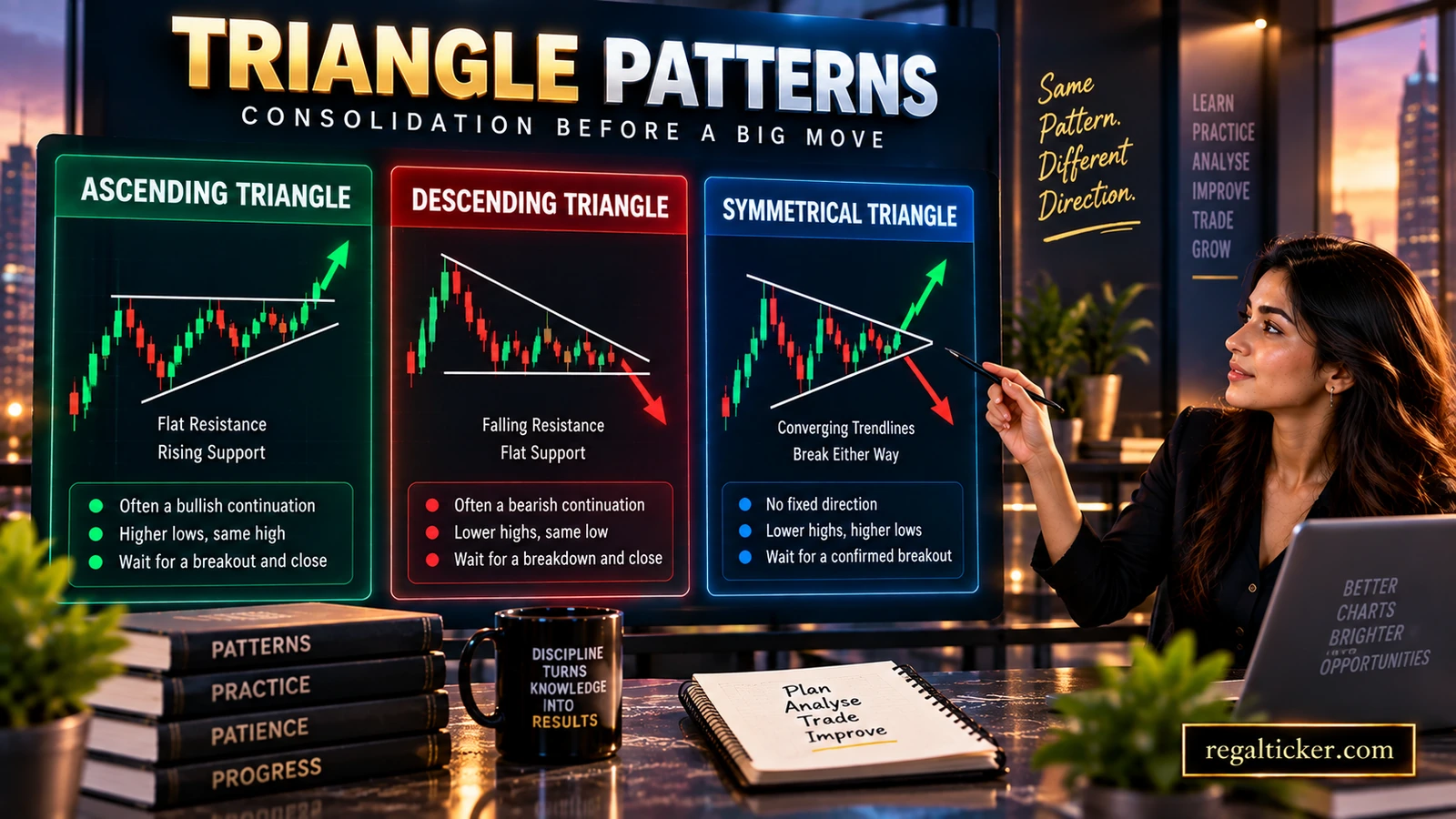

Triangle and Rectangle Patterns
Triangles and rectangles require careful classification because their real outcome depends on context and breakout direction.
Ascending Triangle
An ascending triangle has a broadly horizontal resistance area and rising swing lows.
It is often treated as a bullish continuation structure because buyers are accepting progressively higher lows. However, the bullish scenario does not become active until resistance breaks convincingly. A breakdown through the rising support line can invalidate the expected outcome.
Descending Triangle
A descending triangle has a broadly horizontal support area and falling swing highs.
It is often treated as bearish, but it still requires a confirmed support break. If price instead closes above the falling boundary and follows through, the bearish interpretation has failed.

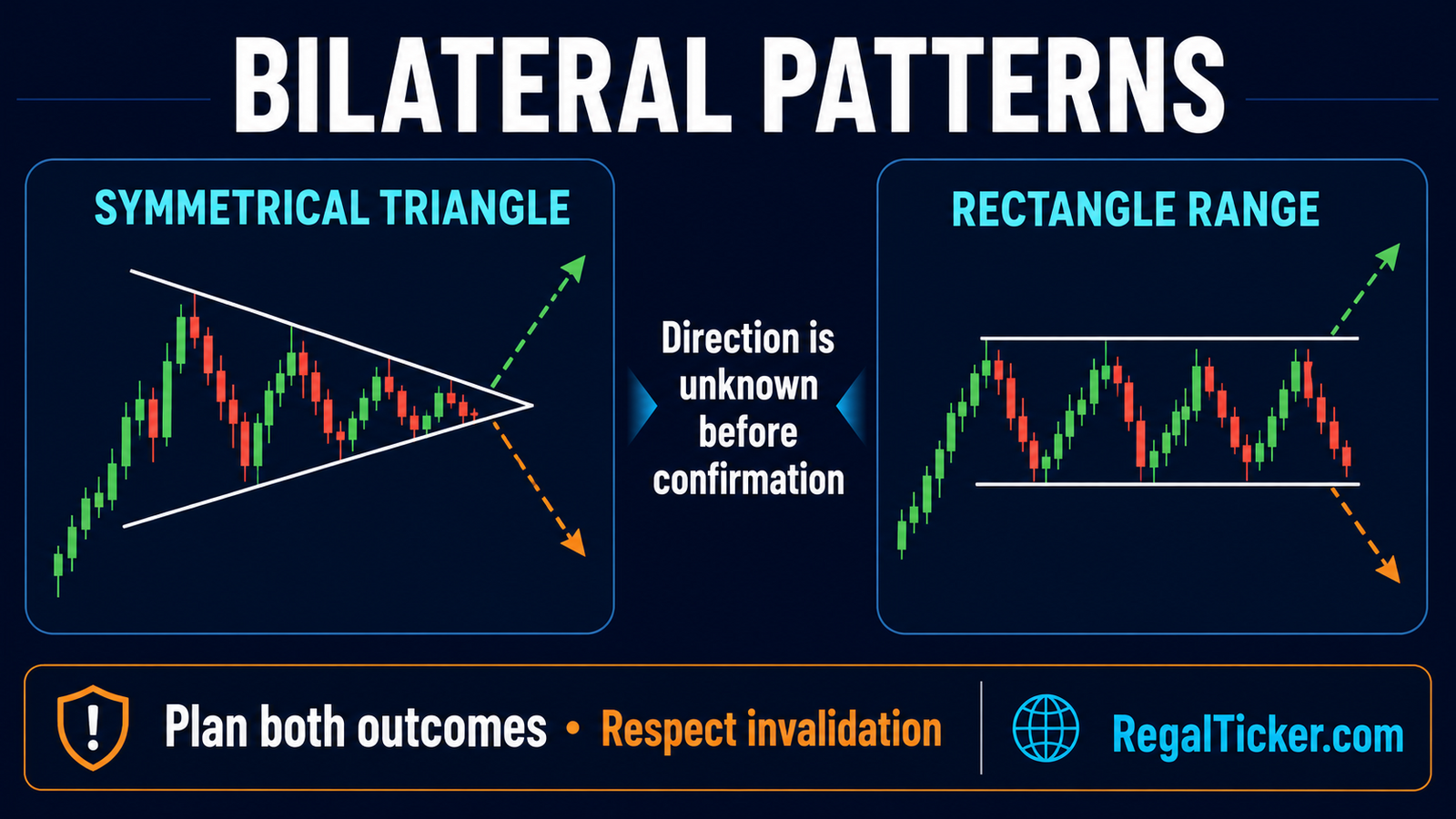

Symmetrical Triangle
A symmetrical triangle forms lower highs and higher lows. The boundaries converge as the trading range contracts.
This structure is generally bilateral. The prior trend supplies context, but the confirmed break determines the active direction.

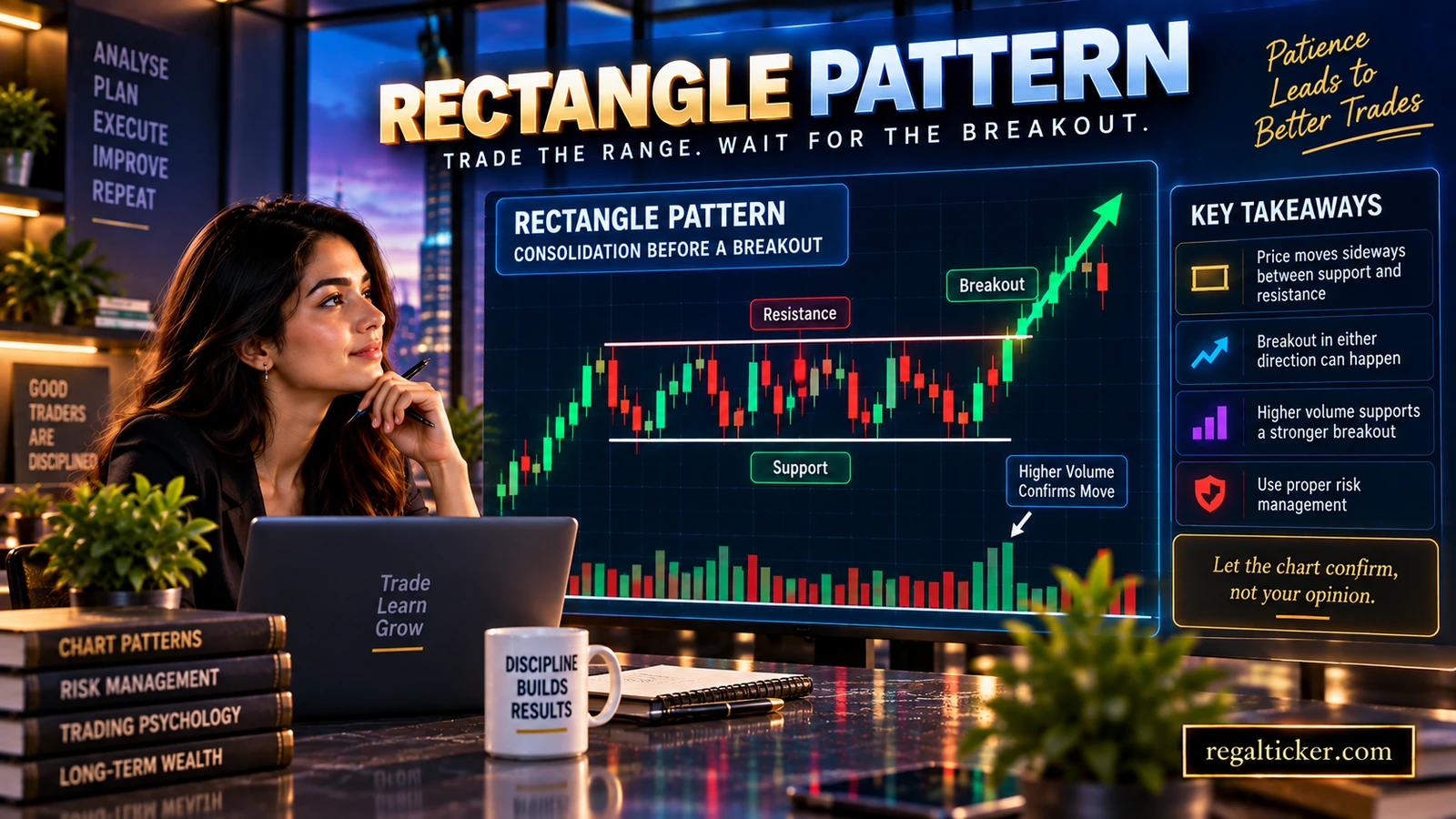

Rectangle Range
A rectangle forms when price repeatedly rotates between horizontal support and resistance areas.
It may be a continuation pause inside a trend, an accumulation or distribution process, or simply a neutral range. Do not decide its meaning from the shape alone.
Investor note
A Triangle Near Its Apex Can Lose Clarity
As price moves very close to the point where two triangle boundaries meet, the remaining space narrows and false breaks can become harder to interpret.
The quality of the earlier swing structure and the behaviour after the break matter more than treating the apex as a deadline.
What About Wedges?
A rising wedge uses two upward-sloping, converging boundaries. A falling wedge uses two downward-sloping, converging boundaries.
They are frequently presented as automatically bearish or bullish. Real interpretation is more nuanced.
Ask:
- What trend existed before the wedge?
- Is momentum expanding or fading?
- Which boundary actually breaks?
- Does price close beyond it?
- Does volume support the move?
- Is there immediate support or resistance nearby?
Do not memorise one arrow and ignore the price response.

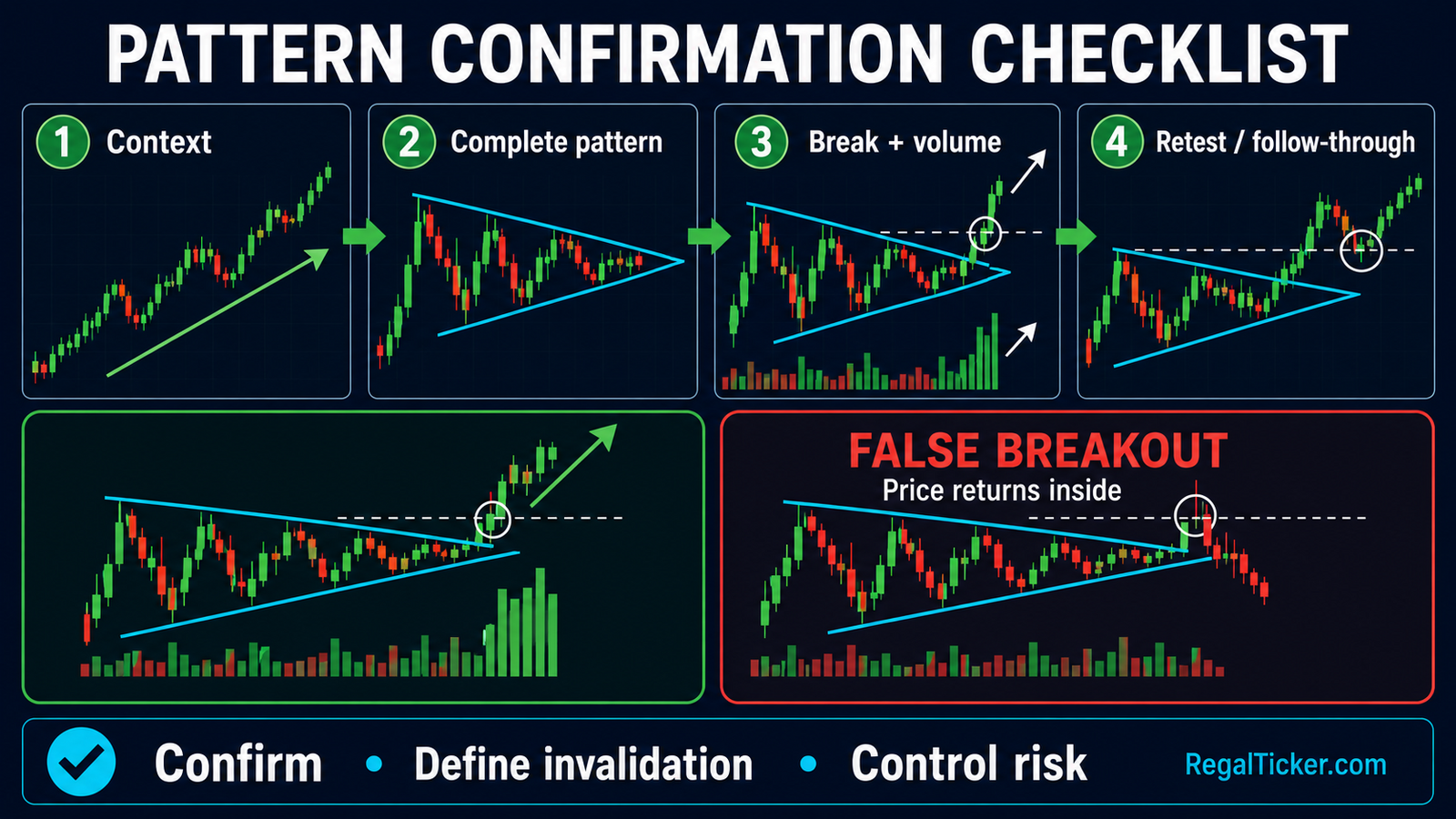

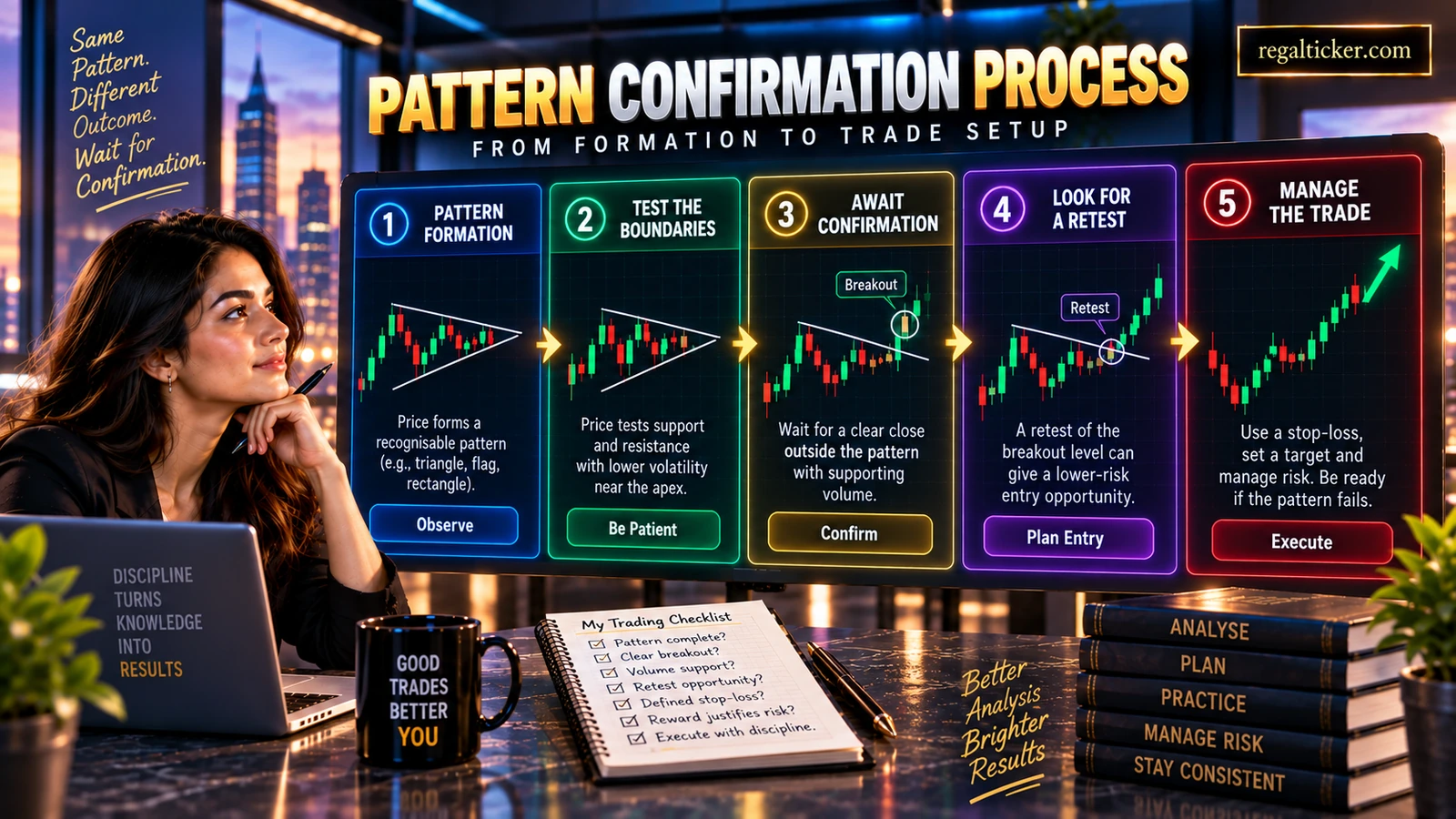

How to Confirm a Chart Pattern
Pattern confirmation is an evidence process, not a single magical candle.
1
Establish the prior trend
Decide whether the pattern is attempting to reverse, continue or resolve a neutral range.
2
Mark the decisive boundary
Use the neckline, support, resistance or trendline that completes the formation.
3
Wait for closing evidence
A close beyond the boundary is generally stronger than an intraday wick that returns inside.
4
Compare participation
Check whether volume expands, contracts or conflicts with the proposed move.
5
Watch follow-through
See whether later candles continue beyond the boundary or immediately reject the break.
6
Evaluate any retest
A held retest can add evidence, but not every valid break returns to the boundary.
7
Define failure
Record what return, close or opposite-boundary break would invalidate the scenario.
Highlight
Confirmation Reduces Uncertainty—It Does Not Remove It
A breakout can fail after a strong close, high volume and a clean retest.
Confirmation improves the evidence available at the decision point. It never creates certainty.
For a deeper treatment, continue with Trading Volume in the Stock Market and Breakout and Breakdown in the Stock Market.
How Volume Supports Pattern Analysis
Volume represents participation, but it must be interpreted relative to recent activity in the same security.
Useful observations can include:
- declining volume while a tight consolidation develops;
- expanding volume as price closes beyond an important boundary;
- weak participation during a supposed breakout;
- heavy volume with little progress, showing strong opposition;
- or a volume spike caused by news that produces volatility without follow-through.
Volume is supporting evidence, not a verdict.
Risk
High Volume Cannot Rescue a Poor Setup
A high-volume wick beyond a weakly drawn boundary is not automatically a valid breakout.
Price structure, liquidity, closing behaviour, nearby levels and follow-through still matter.
Pattern Targets, Invalidation and Risk
Traditional chart analysis often estimates a target by measuring the vertical height of a pattern and projecting that distance from the breakout point.
For a rectangle between ₹480 support and ₹520 resistance:
🧮 Simple calculation
Rectangle Measured-Move Estimate
Pattern height = ₹520 − ₹480 = ₹40
If price confirms above ₹520, a traditional upside estimate is:
₹520 + ₹40 = ₹560
If price confirms below ₹480, a traditional downside estimate is:
₹480 − ₹40 = ₹440
These are estimates—not guaranteed targets.
The projection may run into an earlier swing high, support or resistance, a gap, changing volatility or new information. It also says nothing about the probability of reaching the level.
Invalidation answers a different and more important question: what behaviour would prove that the active interpretation is wrong?
For an upside rectangle break, a decisive return into the range may weaken the setup. A move through the opposite side of the range would provide stronger failure evidence. The exact rule depends on timeframe, volatility and the plan established before entry.
Use the calculator
Test the Risk Before Acting on the Pattern
Enter the planned entry, invalidation-based stop and realistic target in the Risk–Reward Calculator. A favourable ratio does not prove that the pattern will succeed, but it shows whether the proposed risk and reward are internally consistent.
Worked Example: Rectangle Breakout or False Break?
Consider a hypothetical liquid share trading between ₹480 and ₹520 for seven weeks.
Price tests ₹520 twice and later closes at ₹524. Volume is above its recent average, but the next session falls back to ₹518 and closes inside the range.
💡 Real example
The First Break Has Not Held
The ₹524 close activated the upside scenario, but the immediate return below ₹520 weakened it.
If price quickly reclaims ₹520 and holds above the zone, the breakout may recover.
If price continues lower inside the range, the move is better treated as a failed break than as proof that ₹560 must be reached.
If price later closes above ₹520 again, holds the level on a retest and shows follow-through, the evidence improves. The ₹560 measured move remains only an estimate, while the prewritten invalidation rule controls the risk.
The purpose of the example is not to predict the next price. It is to show how analysis changes as new evidence appears.
Why Timeframe and Liquidity Matter
Chart patterns are visible across timeframes, but they are not equally meaningful in every market condition.
A six-month structure on a weekly chart represents a different decision horizon from a 20-minute pattern on an intraday chart. Shorter timeframes contain more noise, may react more sharply to spreads and order flow, and may give less time to evaluate a break.
Illiquid securities create another problem. Sparse trades, wide spreads and isolated price jumps can draw attractive shapes that are difficult to execute in practice.
⭐ Pro tip
Match the Pattern to the Decision Horizon
Choose the security and working timeframe before identifying the pattern.
Then check one higher timeframe for the broader trend and nearby structural levels. Do not keep changing timeframes until a preferred pattern appears.
Common Chart-Pattern Mistakes
- Naming a reversal pattern without a prior trend
- Calling two similar highs a completed double top before the neckline breaks
- Calling every small channel a flag without a flagpole
- Calling every small triangle a pennant
- Treating ascending triangles as guaranteed bullish patterns
- Treating descending triangles as guaranteed bearish patterns
- Ignoring the possibility of a bilateral break
- Drawing boundaries through arbitrary candles to improve the shape
- Treating one wick as decisive confirmation
- Assuming volume guarantees success
- Entering very close to a triangle apex without clear space or follow-through
- Using a measured target without defining invalidation
- Moving the stop or redrawing the pattern to protect an opinion
- Changing timeframes until the chart supports the preferred direction
- Risking more because a pattern looks visually perfect
Chart Pattern Analysis Checklist
- What trend or market structure existed before the pattern?
- Is the formation reversal, continuation or bilateral?
- Are its boundaries based on meaningful swing points or zones?
- Has the structure developed enough to be recognisable?
- What exact close or break would confirm it?
- Does volume support, contradict or add no useful evidence?
- Is there nearby support or resistance blocking the projected move?
- What would invalidate the interpretation?
- Is the measured target realistic after considering nearby levels?
- Does the possible reward justify the planned risk?
- Is the security liquid enough for the intended execution?
- Am I responding to evidence or forcing a familiar shape?
A Beginner Practice Method
Use historical charts before risking money on live pattern recognition.
1
Choose a liquid stock or broad index
Use clear price and volume history rather than a thinly traded security.
2
Hide future candles
Stop the chart before the final outcome so hindsight does not reveal the answer.
3
Mark the prior trend
Write whether price was trending upward, downward or sideways.
4
Draw the boundaries
Use meaningful swing points and zones without forcing symmetry.
5
Classify the scenario
Label it reversal, continuation or bilateral and explain why.
6
Define confirmation
Write the exact behaviour required before the scenario becomes active.
7
Define invalidation
Record what would prove the interpretation wrong.
8
Reveal later candles
Review whether the pattern completed, failed, transformed or remained unresolved.
9
Keep a journal
Track the market, timeframe, pattern, confirmation rule, outcome and mistake.
Frequently asked questions
What are chart patterns in the stock market?
Chart patterns are recognisable price structures formed by swing highs, swing lows, support, resistance and trendlines. They help analysts define scenarios, but they cannot predict future prices with certainty.
What are the three main types of chart patterns?
The three broad categories are reversal patterns, continuation patterns and bilateral patterns. Reversal patterns may change an existing trend, continuation patterns may pause it, and bilateral patterns can resolve in either direction.
What is the difference between reversal and continuation patterns?
A reversal pattern suggests that the prior trend may change direction. A continuation pattern suggests that the earlier trend may resume after a pause. Both require context and confirmation.
Is head and shoulders always bearish?
A standard head and shoulders after an uptrend is a potential bearish reversal, but it traditionally confirms only after the neckline breaks. An inverse head and shoulders is the bullish counterpart after a downtrend.
When is a double top confirmed?
A double top is traditionally confirmed when price breaks below the reaction low between the two peaks. Two similar highs by themselves are not enough.
When is a double bottom confirmed?
A double bottom is traditionally confirmed when price breaks above the reaction high between the two troughs.
What is the difference between a flag and a pennant?
Both normally follow a strong impulse. A flag consolidates inside roughly parallel boundaries, while a pennant narrows between converging boundaries.
Is an ascending triangle always bullish?
No. It is often treated as bullish because it has rising lows beneath horizontal resistance, but the outcome is not confirmed until price breaks and follows through. It can also fail or break downward.
Is a symmetrical triangle bullish or bearish?
A symmetrical triangle is generally bilateral. The prior trend provides context, but the actual confirmed breakout direction activates the scenario.
Does high volume confirm every breakout?
No. Higher volume can support participation evidence, but it cannot fix a poorly formed pattern, a weak boundary, poor liquidity or a breakout that immediately fails.
Must price retest a broken boundary?
No. Some breakouts retest and others continue without returning. A successful retest can add evidence, but waiting for one may also mean missing moves that do not retest.
Are chart-pattern targets guaranteed?
No. A measured move is only an estimate based on the pattern’s size. Nearby levels, volatility, liquidity and new information can prevent price from reaching it.
What should I learn after chart patterns?
Continue with Trading Volume in the Stock Market to understand participation, then study Breakout and Breakdown in the Stock Market for confirmation, retests and false signals.
Investor note
Related tool: demerger cost records
For a shareholding affected by a demerger, use the Demerger Cost Basis Calculator with the company’s official allocation figures. Keep that working with the original acquisition records.
Verify through official sources
Official references
- SEBI Investor — Technical Analysis vs Fundamental Analysis
- NSE — Technical Analysis and Chart Patterns for Capital Markets
- NSE — Technical Analysis and Chart Patterns for Capital Markets PDF
- NSE — Security-wise Historical Price and Volume Archives
- National Institute of Securities Markets — Technical Analysis for Beginners
- CME Group — Trend and Continuation Patterns
Final takeaway
Read the Evidence, Not Just the Shape
A chart pattern is useful when it turns uncertain price movement into a conditional plan.
Start with the prior trend. Draw boundaries from meaningful swing points. Wait for the structure to complete. Judge the closing break, participation and follow-through. Then define the exact behaviour that invalidates the interpretation.
Reversal patterns may change an existing trend.
Continuation patterns may pause it.
Bilateral patterns require preparation for either direction.
None of them promises an outcome. A measured target is an estimate, while invalidation and controlled risk are the parts of the plan you can define before the market moves.
The next lesson is Trading Volume in the Stock Market.
